Peristaltic Pump Filling Sys/tem with Weighing Function, Digital Dosing Pump for Precision Chemical & Viscous Liquids (3200)

Product Description:Using a high-precision hygienic peristaltic pump, liquid will not pass through the pump, which is especially suitable for food. Only the pipeline contacts the liquid, ensuring that every transfer is clean and pollution-fr-ee. Features: Precise quantity control Automatic frequency conversion Precise filling of various micro vials Product parameters Product model: CSY-3500, CSY-3200, CSY-1200, CSY-M90 Rated voltage: AC 220V 50Hz Rated power: 40W, 30W, 20W, 10W Maximum flow rate: 3.5L/min, 3.2L/min, 1200mL/min, 90ml/min Applicable capacity: 10g-3Kg, 8g-3Kg, 2-300g, 10g-8Kg Filling error: ≤1g, ≤1, ≤0.5g, ≤0.1g Filling height: 0-32cm adjustable, 0-32cm adjustable, 0-20cm adjustable, 0-15cm adjustable Machine weight: 3kg, 3kg, 2.5kg, 2kg Product size: 18cm x 18cm x 12cm Packaging size: 35cm x 23cm x 19cm Automatic peeling, automatic start and stop, automatic speed reduction, automatic counting, automatic reset, automatic storage, power-off memory, adjustable delay, release detection, digital display control

• 【Automatic Filling Machine】Product model: CSY-3500, CSY-3200, CSY-1200, CSY-M90;Rated voltage: AC 110V/220V ;Rated power: 40W, 30W, 20W, 10W;Max flow rate: 3.5L/min, 3.2L/min, 1200mL/min, 90ml/min;Applicable capacity: 10g-3Kg, 8g-3Kg, 2-300g, 10g-8Kg; Filling height: 0-32cm adjustable, 0-32cm adjustable, 0-20cm adjustable, 0-15cm adjustable;size: 18cm x 18cm x 12cm
• 【Liquid Filling Machine 】1. Automatic peeling while putting on the bottle. (Do not need to worry about the weight of the empty bottle.) 2. Automatic starting after peeling 3. Automatic slowing down when nearly finish filling 4. Automatic stopping when finish filling 5. Automatic reset after taking off the filled bottle.
• 【Food Grade Silicone Tube】It has the advantages of colorless, odorless, high transparency, wear resistance and corrosion resistance. One more silicone tube for fr-ee.When filling, the liquid only passes through the pipe, not through the inside of the machine, which is easy to clean and replace.
• 【2 Steps Operation】The whole process is easy to operate. After setting the parameters of the automatic liquid filling machine, there is no need to adjust them when using it, just fill the empty bottles and take down the filled bottles.

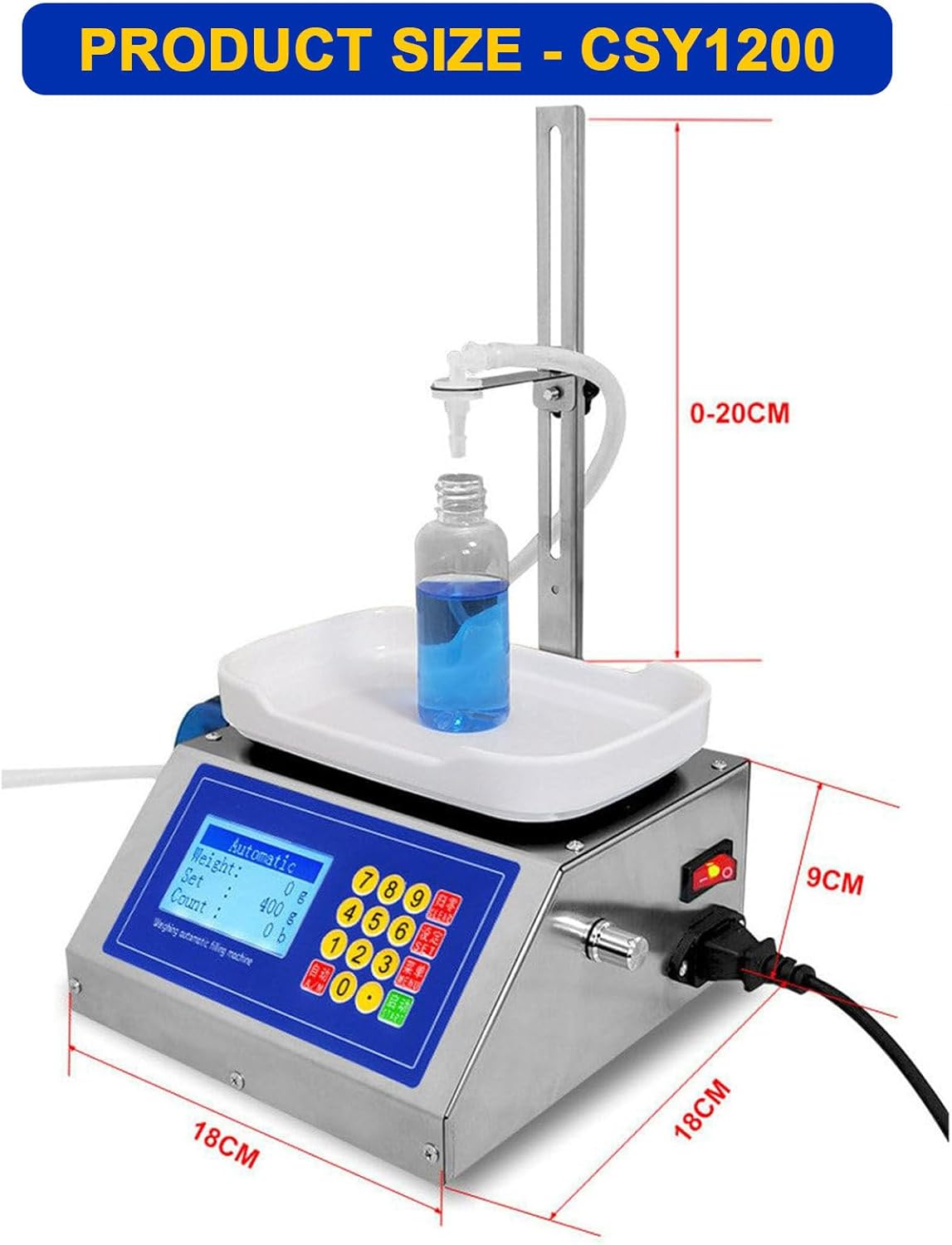

• 【Suitable for Various Sizes Bottles】The Perfume Filling Device is equipped with a liftable filling nozzle with an adjustable height of 0-20cm, which can easily handle bottles of different heights; and is equipped with two sizes of filling nozzles (6mm, 3mm) compatible with a variety of Size bottle mouth.
